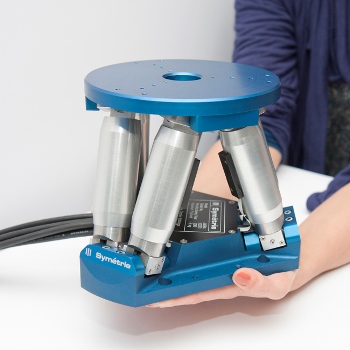

At stand B3.520, Symetrie will demonstrate the Bora hexapod, a compact 6DoF (degrees of freedom) parallel kinematics system for the positioning and adjustment of precision elements. It can position up to 10kg (22lbs) payloads with 50nm resolution and ±0.15µm repeatability. It offers up to 40mm and 30° travels while its height is only 145mm.

Thanks to these features, Bora hexapod meets highly demanding criteria in terms of resolution, accuracy, stability and size.

Its dimensions allow an integration in a small environment, for instance at the tip of a goniometer for an application on a synchrotron beamline, or on an optical ground support equipment to align and calibrate space optics.

Bora hexapod can be used in any orientation: vertical, horizontal, or upside down. High vacuum and clean room compatibility options are also available.
