EU-funded heart diagnostic device undergoes clinical feasibility study

Share this on social media:

A team of researchers and commercial partners working on the EU-funded CARDIS project have developed a prototype point-of-care device based on silicon photonics, which could allow patients to be screened for cardiovascular diseases at their GP’s office.

A clinical feasibility study involving 100 patients has been completed by medical research institute Inserm, located at the Georges Pompidou European Hospital in Paris, France.

Cardiovascular disease (CVD) is among the leading causes of death globally. Early identification of individuals at risk allows for early intervention to halt or reverse the pathological process. Assessment of arterial stiffness by measurement of aortic pulse wave velocity (aPWV) is included in the latest guidelines for CVD risk prediction and it is a key marker for hypertension. However, no tools are available today to easily screen a large number of patients for arterial stiffness at a GP’s office. As a consequence, many individuals remain undiagnosed.

As part of the CARDIS Horizon 2020 project, partners including Imec, Ghent University and Medtronic, developed a prototype mobile, low-cost, point-of-care screening device for CVD. The device aims to obtain reproducible and reliable measurements in a way that requires minimal skill to operate and minimal patient contact.

The device uses Laser Doppler Vibrometry (LDV), whereby a very low-power laser is directed towards the skin overlying an artery. The skin’s vibration amplitude and frequency, resulting from the heart beat, are extracted from the Doppler shift of the reflected beam. The device includes two rows of six beams to scan multiple points on the skin above the artery in parallel.

At the heart of the system is a silicon photonics chip, which was designed by the Photonics Research Group (an Imec laboratory at Ghent University) and prototyped through Imec’s silicon photonics technology platform iSiPP50G. The chip was then implemented using advanced optical packaging approaches developed at the Tyndall National Institute in Ireland, and integrated into a handheld device and validated for human use by Medtronic.

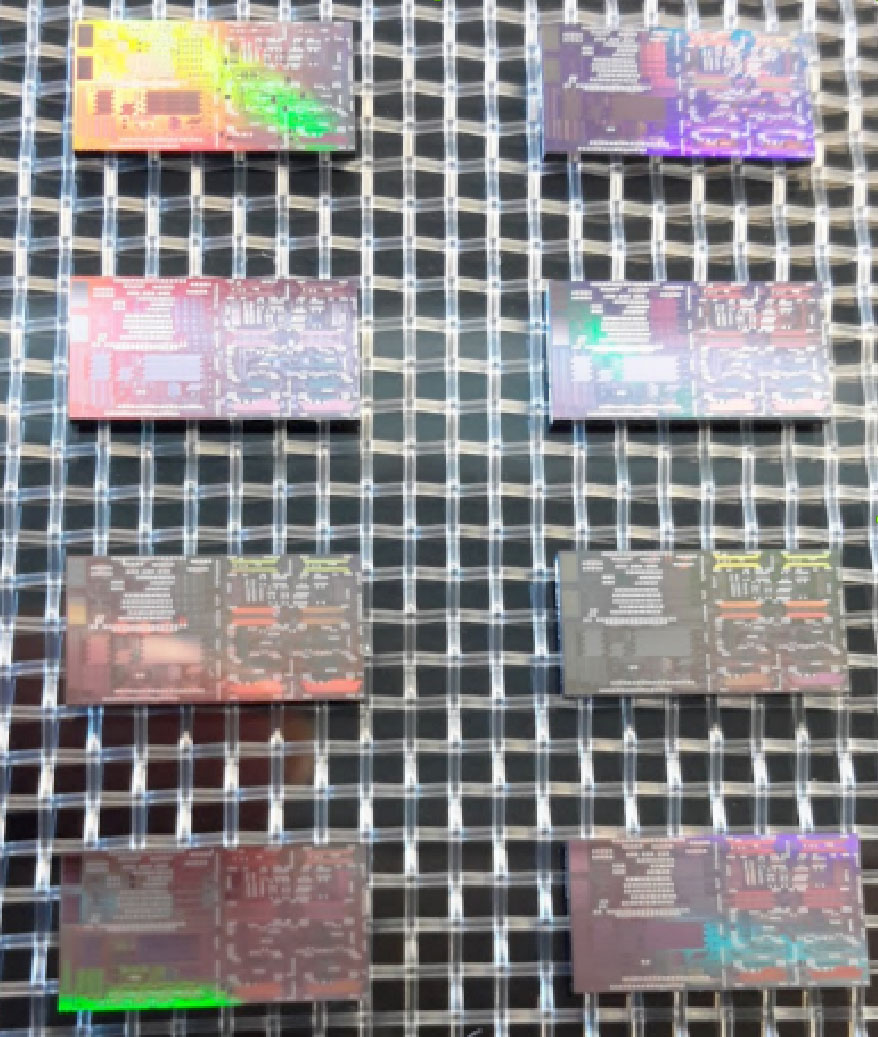

The silicon photonic chips perform Laser Doppler Vibrometry on a patient’s skin to deduce metrics for arterial stiffness and to diagnose cardiovascular diseases. Credit: Imec/CARDIS

The clinical feasibility study at the Georges Pompidou European Hospital in Paris obtained a substantial clinical dataset, from both healthy subjects and patients with cardiovascular conditions. According to the researchers, the quality of the device readings was very good and adequate measurement results could be obtained in all subjects. In addition, the measurement data and variability within sessions were in line with data and variability acquired by reference techniques. A full dataset is now available and in-depth analysis will be performed both at Inserm and at the biomedical engineering department of Ghent University with the support of Medtronic. Moreover, further clinical feasibility studies are planned in the Academic Hospital of Maastricht (The Netherlands).

‘The CARDIS device was well accepted by all patients, and it was considered useful and well tolerated,’ said Dr Pierre Boutouyrie, the cardiologist in charge of the feasibility study. ‘Feasibility of signal acquisition is excellent since a useful signal was acquired in 100 per cent of the patients. Tolerance was excellent too, the time to get useful signals was less than 10 minutes, and patients barely noticed that a measurement was performed.’

Roel Baets, head of the Photonics Research Group (imec/UGent), added: ‘Silicon photonics is a powerful technology that combines the unique sensing capabilities of photonics with the low-cost and miniaturisation capabilities of silicon semiconductor technology. It’s exciting to know that our silicon photonic chip and prototype medical device hold the promise to change the lives of so many patients with cardiovascular diseases.’

In a next step, a small series of the device will be produced to perform a clinical feasibility study on a larger group of patients and over a longer period of time. If this feasibility study demonstrates the ability of the technology to detect cardiovascular diseases at an early stage, high volume production can be initiated. One of the benefits of the silicon photonics technology is that at high volumes, the chip can be produced at low cost.
